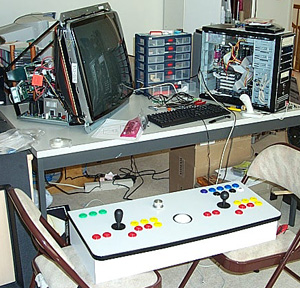

Computer,
monitor and control panel being bench tested.

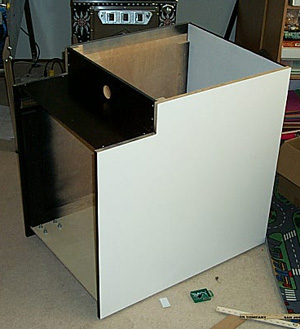

Bottom
cabinet finished with Formica and exposed areas painted black.

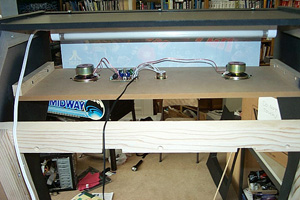

Creative
Labs speakers mounted in the marquee area. These were just some
computer speakers taken out of their plastic case along with
the amplifier and mounted on 1/2" MDF. The potentiometer
in the middle is for volume control. A fluorescent light fixture
is attached to the top to light the Marquee.

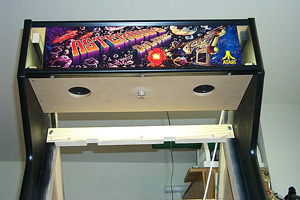

My
Asteroids Deluxe marquee wasn't enough for this machine. Custom
artwork will be created later. The speaker panel is complete
and awaits painting.

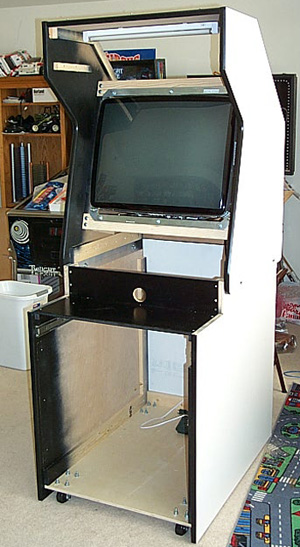

The
monitor is finally mounted. This is a two person job. The
D9200 weighs 80 pounds. Not terribly heavy for two people.
It is the equivalent of picking up a 5 gallon water jug for
each person but the handholds on a bare monitor make lifting
it a bit tricky.

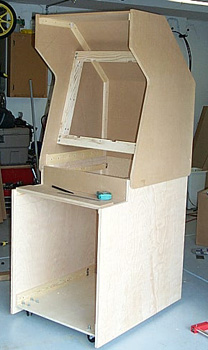

The top cabinet
is attached to the lower cabinet with lag bolts.
Not
quite finished but ready for some play testing.

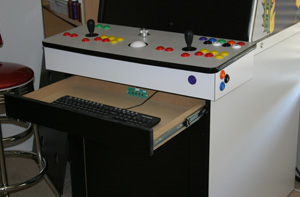

A
slide out keyboard tray for when a keyboard is necessary. Notice
the D9200 control panel mounted to the back.

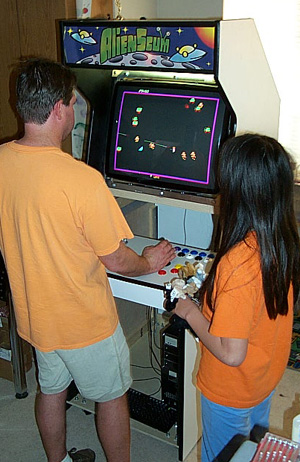

The
finished beast complete with custom artwork. I am running the
Mame32 front end.
